Light
Luminaires with ATEX approval

Explosive atmospheres, due to flammable gases, vapors and dusts, require the use of explosion-proof luminaires. Maintenance and repair work as well as rescue operations in potentially explosive atmospheres are only permitted with ATEX-approved luminaires. The application range of ELSPRO Ex luminaires is defined by the respective certified ATEX approval.

to the products

Special features
mobile ATEX floodlights and ATEX work lights

for ATEX zones gas zone 1,2 and dust zone 21, 22
up to 27,450 lumens (206 W) and voltages 230 V, 42 V as well as 24 V
up to 155 lm/W
state-of-the-art LED technology (high-power LEDs) with high luminous efficacy
on request with connector ATX, Marechal, steel or CEAG

LYWF_live_800x600

AY-K_live_800x600

with or without frame
Versions with emergency light function
optional output-side built-in sockets available
Versions for ambient temperatures from -40°C to +55°C
Protection class up to IP67

Special features
stationary ATEX linear and ATEX area lights

for ATEX zones gas zone 0,1,2 and dust zone 20, 21, 22
Power from 8 to 195 watts
Protection class up to IP65 to IP69 – waterproof and dustproof
Power factor 0.98
Connection via cable gland M20
dimmable versions
High Power LEDs
single-phase or three-phase through-wiring possible
up to 25,692 lumens

Register-24

Register-24_1

up to 142 lumens/watt
Versions for ambient temperatures from -40°C to +65°C
Versions with emergency light function
Color temperature 4,000 K
Color rendering index ≥ 80
Protection class 1
Versions with shock resistance IK10
customized light calculation for your project

Views

ELSPRO_Ex-Arbeitsleuchte_R_AY-R1840A230_101

ELSPRO_Ex-Arbeitsleuchte_Z_LED_AY-ZL2LEDA230_101

ELSPRO_Ex-Arbeitsleuchte_ZEX_LED_AY-ZEX1LEDA230_102

LED Floodlight
LYWF-300XL

ELSPRO_LED-Flutlichtstrahler_LYWF-300XL_001_800x600

to the data sheet

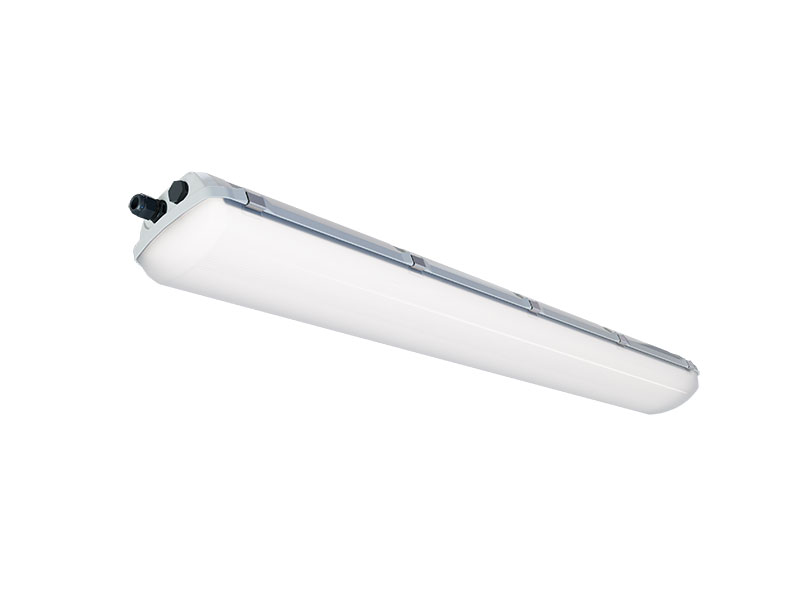

Ex area light
EXTRA-EX-LED

EXTRA-Ex-LED_800x600

to the data sheet

Ex area light
PITBUL-EX-LED

PITBUL-N-LED_800x600

to the data sheet

Ex area light
AQUA-EX-LED

AQUA-70-EX_800x600

to the data sheet

Ex area light
EXTRA-N-LED

EXTRA_N_LED_800x600

to the data sheet

Ex area light
PITBUL-N-LED

PITBUL-N-LED_800x600

to the data sheet

Ex area recessed luminaire
FILA-N-LED

EINBAULEUCHTE-FILA-N-LED_800x600

to the data sheet

Ex LED floodlight
BERGER-N-LED

ELSPRO_Ex-LED-Flutlichtstrahler_BERGER-N-LED_BERGER-N-080803_001

to the data sheet
